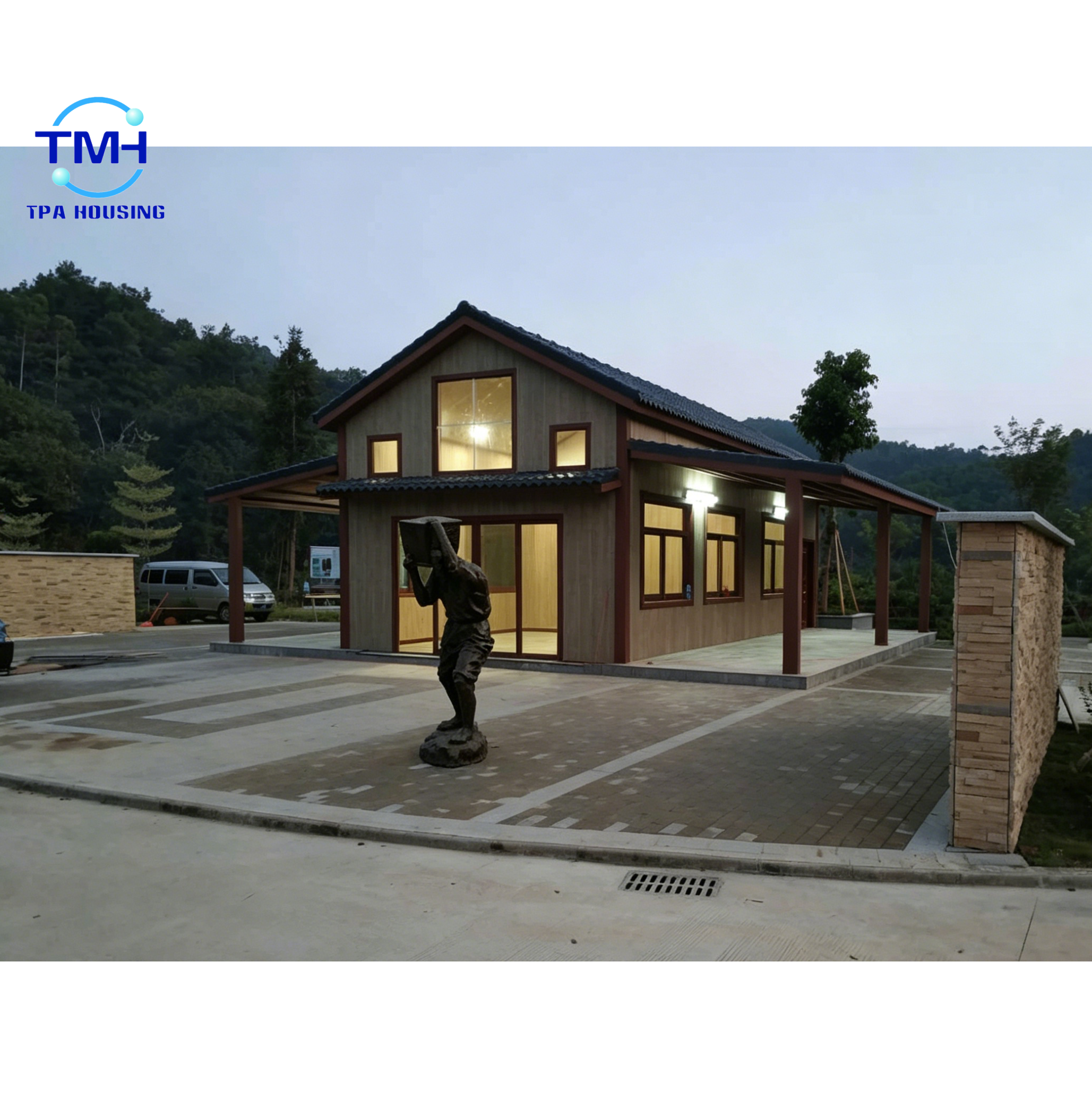

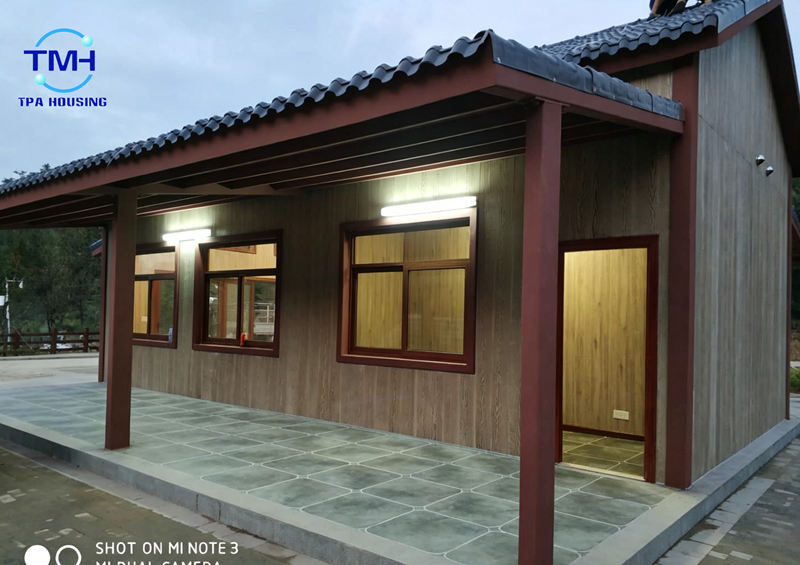

Ready-Made Prefabricated Light Steel Small Villa Fast Install Modular Tiny House With Welding & Bending Services

Product Description

Factory Profile
We are an integrated service company dedicated to and specialized in designing, manufacturing, construction, and marketing. We focus on a full range of products like steel structure building, prefab house, light steel villa house, container house and so on. We have two production workshops covering an area of 30,000 square meters. We have a steel structure automatic production line, and the workshop is equipped with multiple quality inspectors to strictly control the quality. A third-party quality inspection report can be provided. The annual output of steel structure exceeds 20,000 tons, and the delivery is on time. Our company has self-export authority, we also have 10 years of export experience and overseas project construction experience, and our products are exported to 39 countries and regions in Asia, Europe, South America, Africa, Pacific, etc. It would be our great pleasure to work with you and build a sweet future together.
Factory Overview
Factory Certificate
Factory Workshop
Steel Manufacturing
Production Process

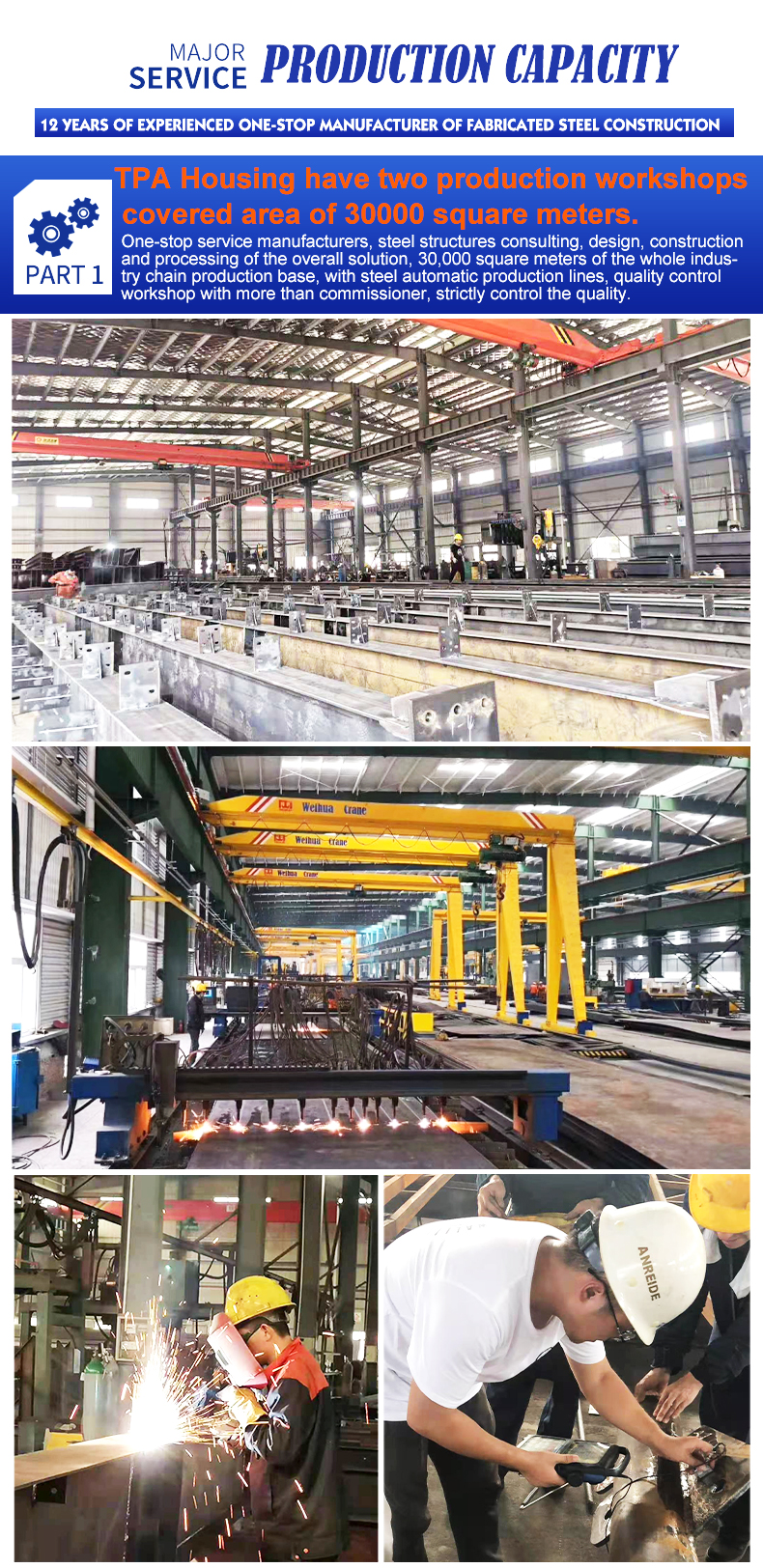

Quality Inspection
Steel Structure Columns
Warehouse Project
Technical Specifications
Category Component Specifications
Main Steel Frame H section steel Q235/Q345 steel 8mm/10mm
Welding Automatic submerged arc welding
Rust removal Sand blasting
Surface finish Alkyd paint or galvanized
Intensive bolt M20, Grade 10.9
Supporting System Angle brace L50x4, Steel Q235, processed and painted
Horizontal brace L50x4, Steel Q235, processed and painted
Column brace Φ20, Steel Q235, processed and painted
Tie rod Φ89*3, Steel Q235, processed and painted
Ordinary bolt M12 Galvanized bolt
Roof Purlin C160*60*2.5, Steel Q235, galvanized and painted
Roof panel Sandwich panel or corrugated steel sheet
Sky light 6mm thick PVC
Accessories Glass cement, self-tapping screws, etc.
Edge cover 0.4mm steel sheet profile trimming
Gutter 0.4mm thick sheet steel profile or galvanized sheet
Down pipe Φ110 PVC
Walls Purlin C160*60*2.5, Steel Q235, painted
Wall Sandwich panel or corrugated steel plate
Accessories Glass cement, self-tapping screws, etc.
Edge cover 0.4mm steel sheet profile trimming
Ventilation Ventilation ball
Doors & windows Rolling door/sliding door PVC/alu/steel/window
Material Specification

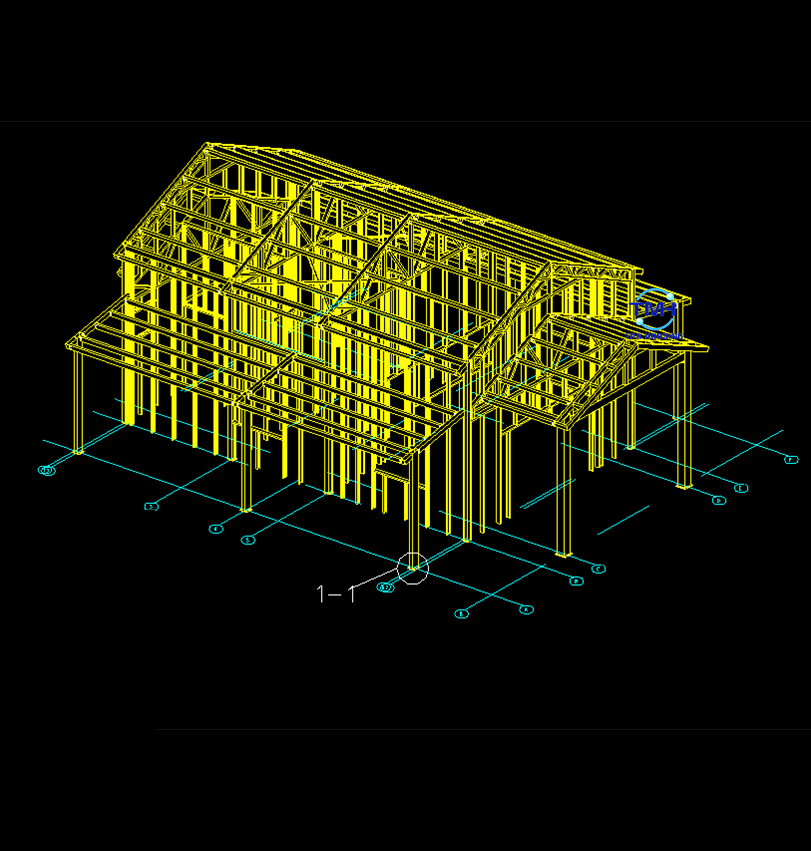

Steel Framing System
Structural Details

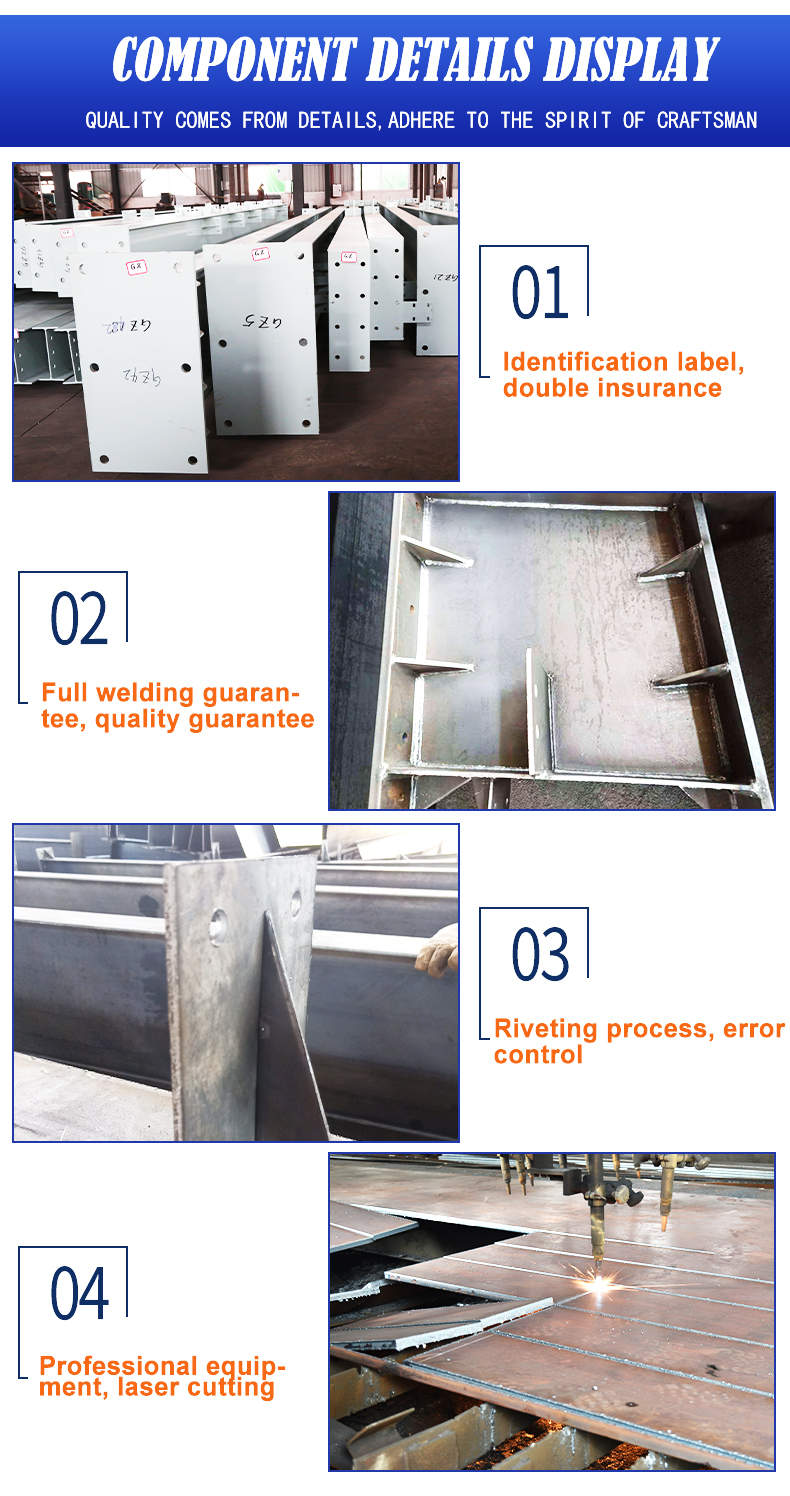

Prefabricated Assembly
Packing & Shipping

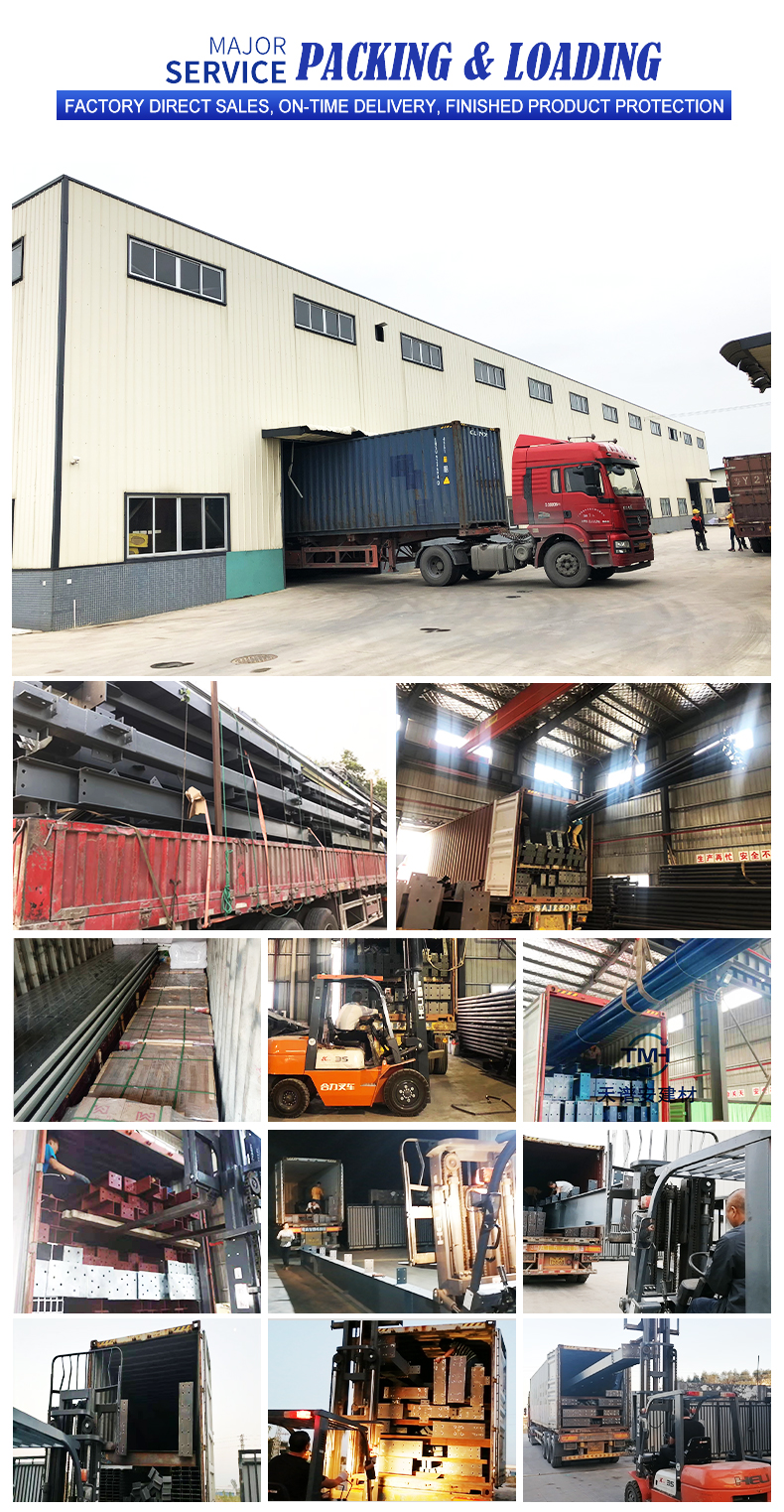

Steel Structure Packing and Loading
Product Display
Steel Warehouse Project
Industrial Workshop Building

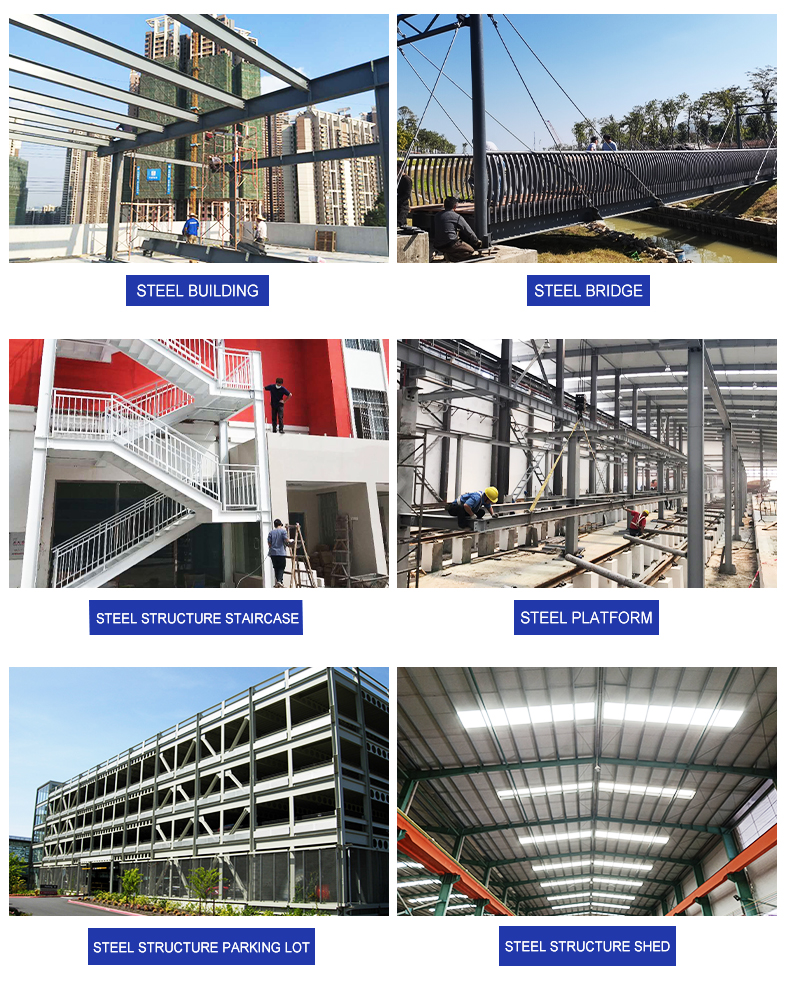

Prefabricated Steel Structure
Steel Structure Canopy
Multi Story Steel Frame

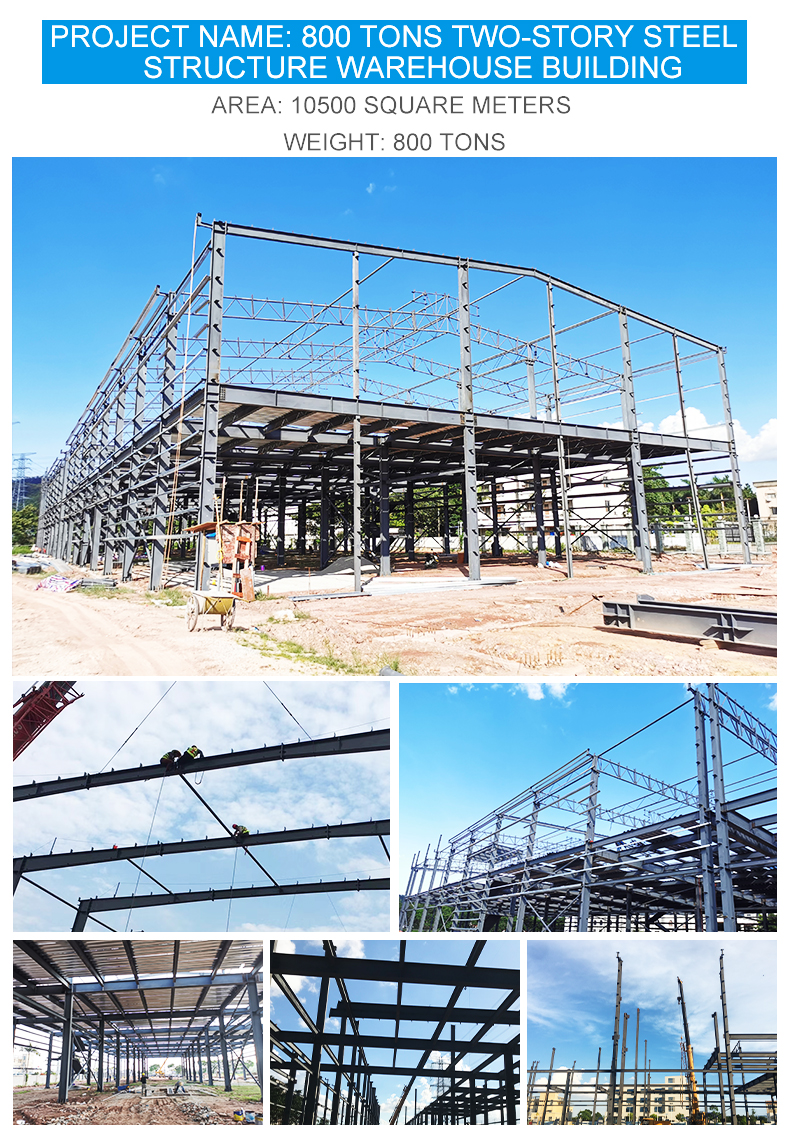

Finished Warehouse Project
Modern Prefab Office

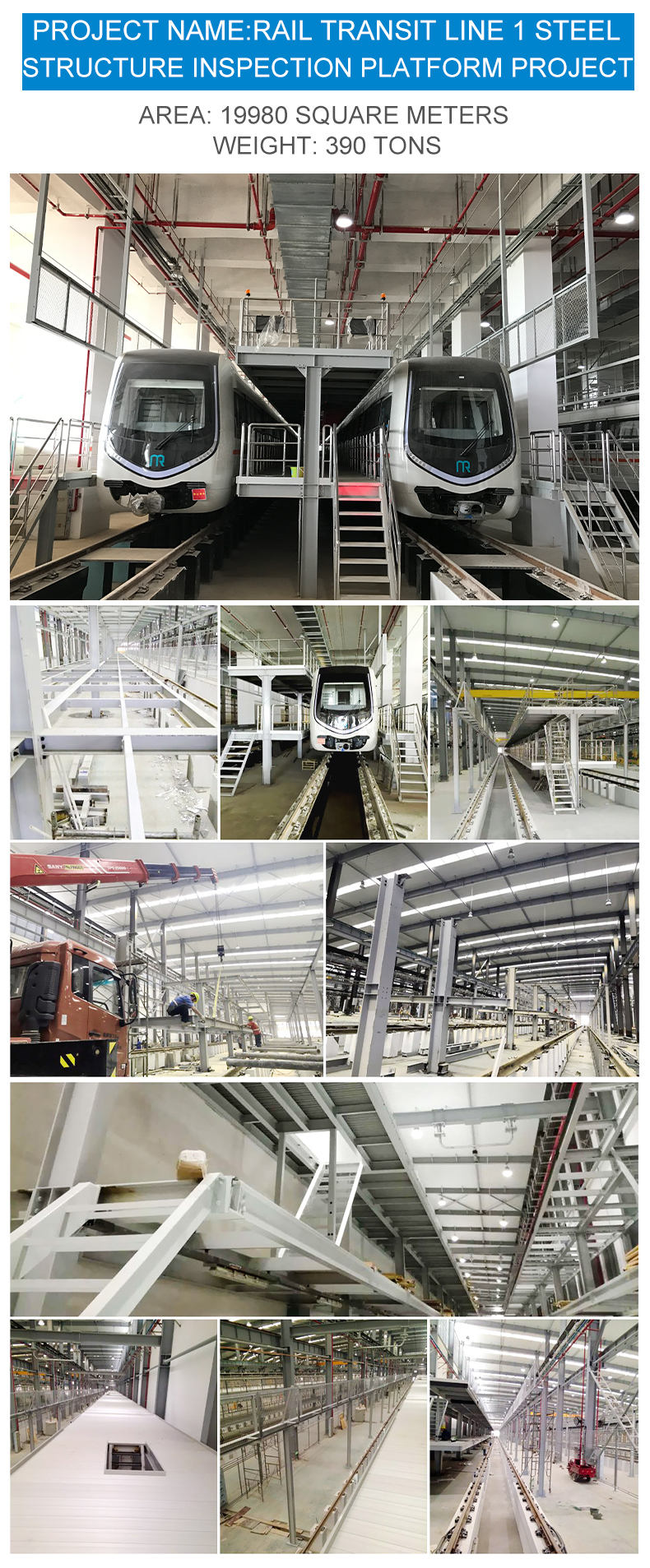

Steel Frame Building Site
Frequently Asked Questions
Q1: What materials are used for the main steel frame?
The main frame is manufactured using high-quality Q235 or Q345 H-section steel, with thickness specifications of 8mm or 10mm. The surfaces are sandblasted to remove rust and finished with alkyd paint or galvanization for superior corrosion resistance.
Q2: How are the steel structures packaged and shipped for export?
All steel components are securely bound and placed onto steel pallets or directly loaded into open-top or standard containers, depending on their dimensions. Smaller accessories and fasteners are packaged in sturdy wooden boxes or steel crates to prevent damage during transit.
Q3: Do you provide quality inspection reports?
Yes, we have multiple quality inspectors within our production workshop to monitor the entire fabrication process. We can supply complete in-house inspection reports as well as arrange for third-party quality inspection certificates if required by the client.
Q4: Are the prefabricated buildings customizable?
Absolutely. We provide integrated services covering design, manufacturing, and construction. Our engineering team can customize the structural layout, dimensions, roof panels, wall panels (sandwich panel or corrugated steel plate), and accessories to match your project specifications.
Q5: What options are available for wall and roof panels?
We offer various options including thermal-insulated sandwich panels (EPS, Rockwool, or PU) and standard corrugated steel sheets. Edge covers, skylights, gutters, and downpipes can be configured to meet environmental and aesthetic requirements.
Q6: What is the average manufacturing and delivery lead time?
With our automated steel structure production line producing over 20,000 tons annually, our manufacturing processes are optimized for speed. Delivery timelines depend on project size and complexity, but all shipments are scheduled strictly on time.
