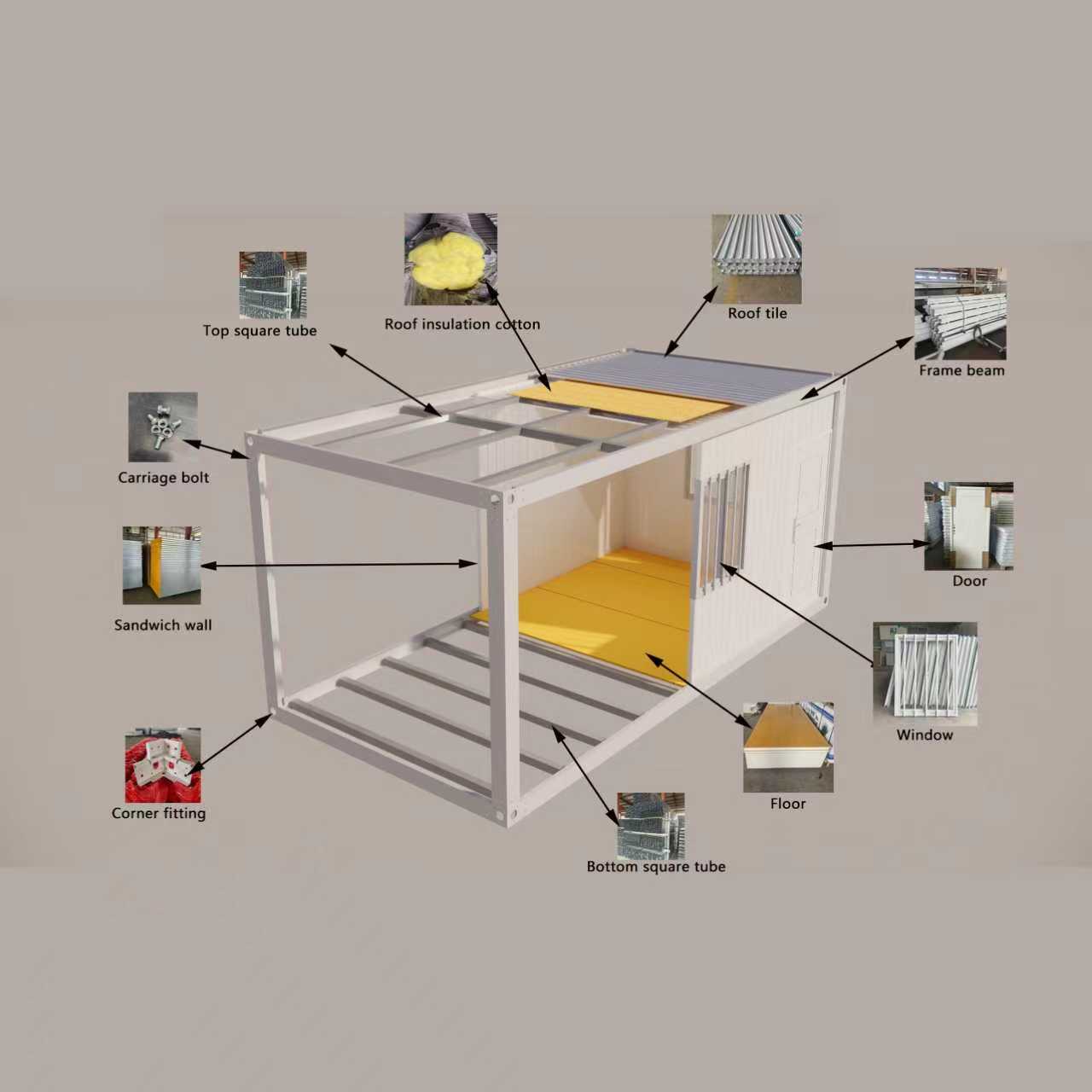

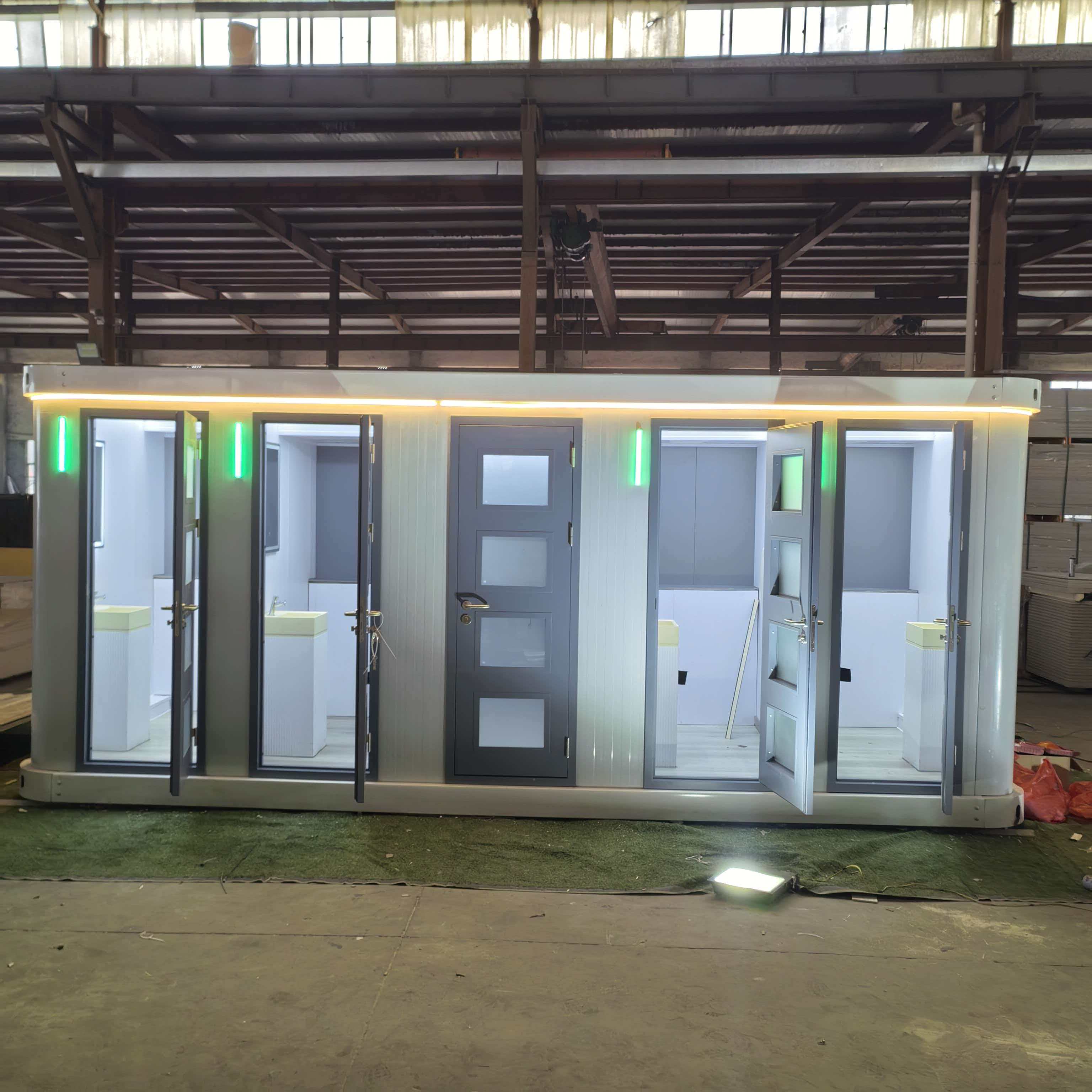

| Standard specification: 3000*5950*2800 | |||||
|---|---|---|---|---|---|
| Project | Name | Unit | Quantity | Length (m) | Remark |

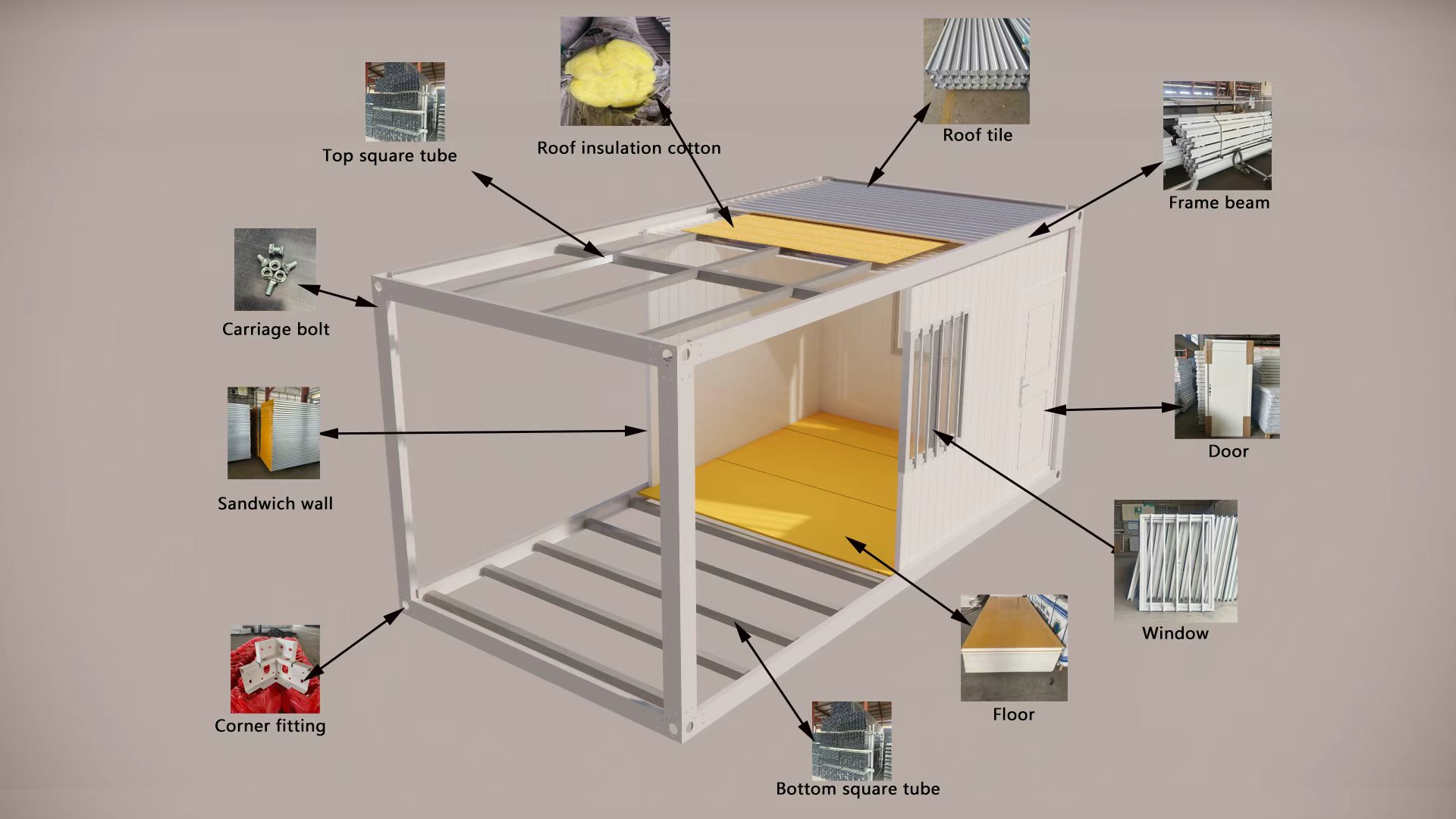

| Fast LCL main material | Top beam | branch | 2 | 5.63 | |
| Top beam | branch | 2 | 2.68 | ||
| Bottom beam | branch | 2 | 5.63 | Welded with pipe cards | |
| Bottom beam | branch | 2 | 2.68 | ||
| Corner column | branch | 4 | 2.48 | ||
| Horn head | piece | 8 | 8 pieces per set | ||
| Platen groove | Galvanized grooves | branch | 2 | 5.78 | Upper beam and wall panel connection |
| branch | 2 | 2.80 | |||
| Galvanized square pipe | Chassis purlins | branch | 4 | 2.99 | 80*80 galvanized square pipe |
| branch | 5 | 2.99 | 40*80 galvanized square pipe | ||
| Top purlin | branch | 2 | 2.80 | 50*50 galvanized square pipe | |
| branch | 3 | 1.88 | 40*80 galvanized square pipe | ||
| branch | 6 | 1.88 | 40*60 galvanized square pipe | ||
| Door frame edge bar | - | piece | 1 | 2.55 | 20*40 galvanized flat pipe |
| Column in the middle | Wind column | piece | 2 | 2.48 | 40*60 galvanized square pipe |

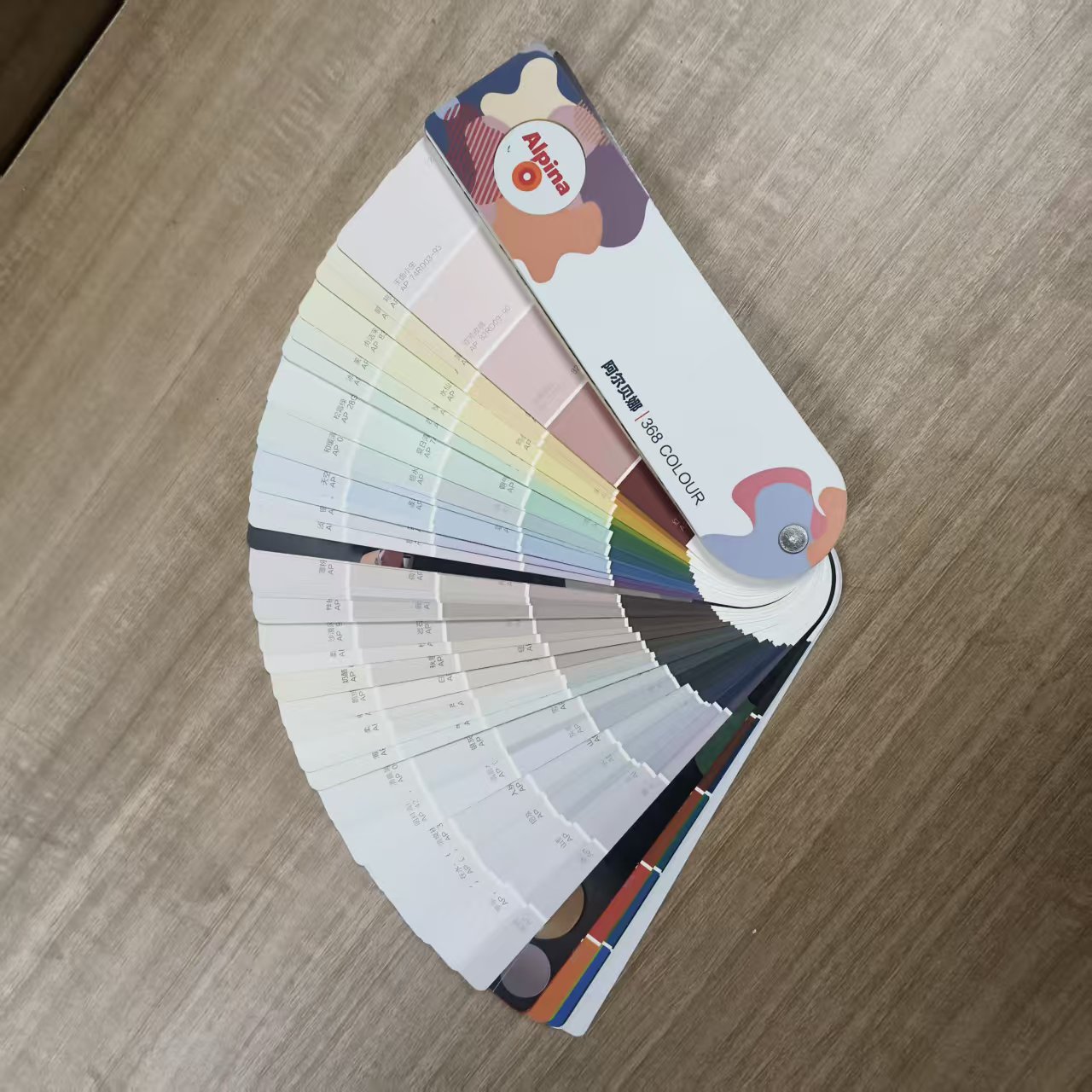

| Spray plastic paint | The upper and lower round beams, columns, and corner heads are sprayed with paint | ||||

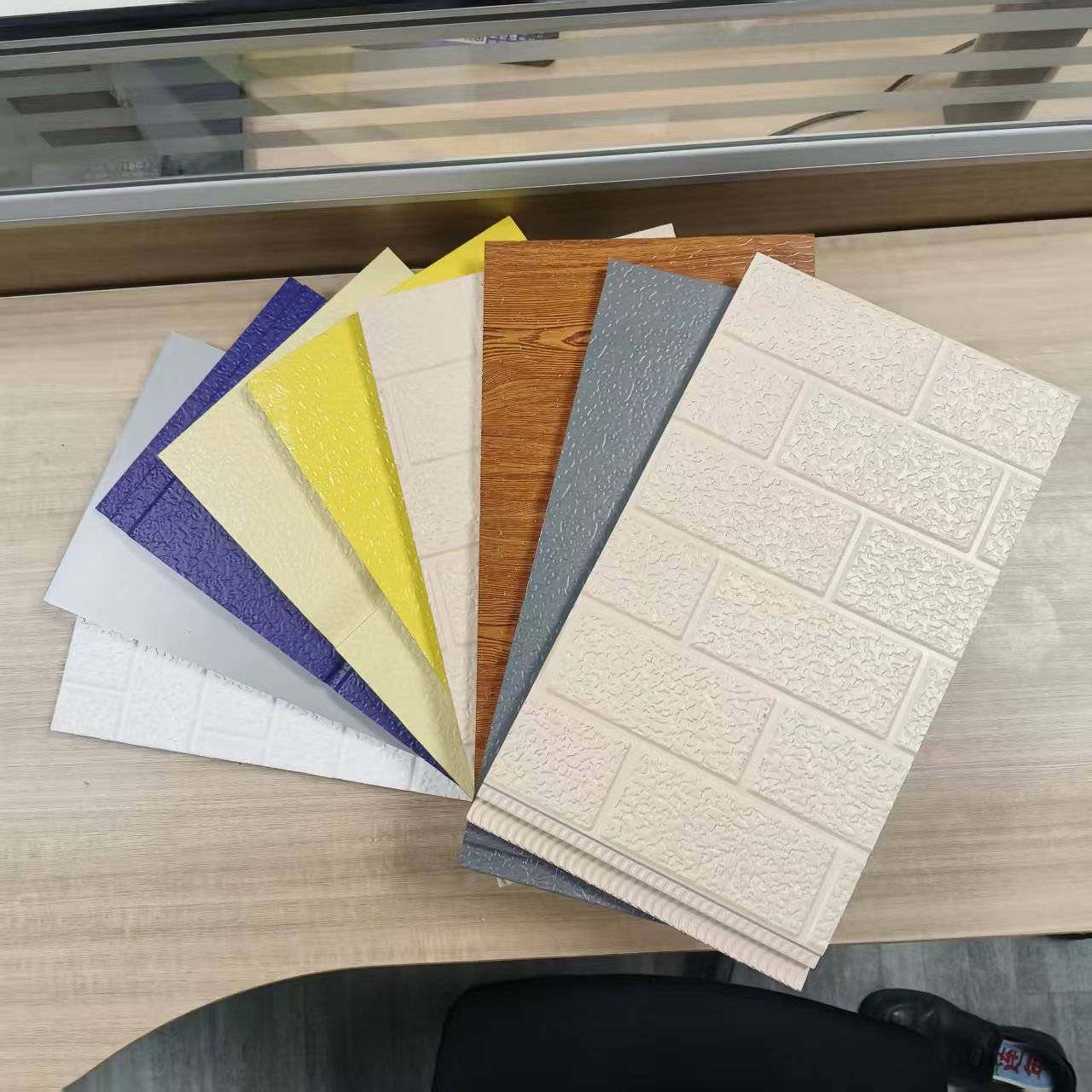

| wall panels | 50 rock wool boards | sheet | 15 | 2.55 | |
| sheet | 1 | 3.19 | |||

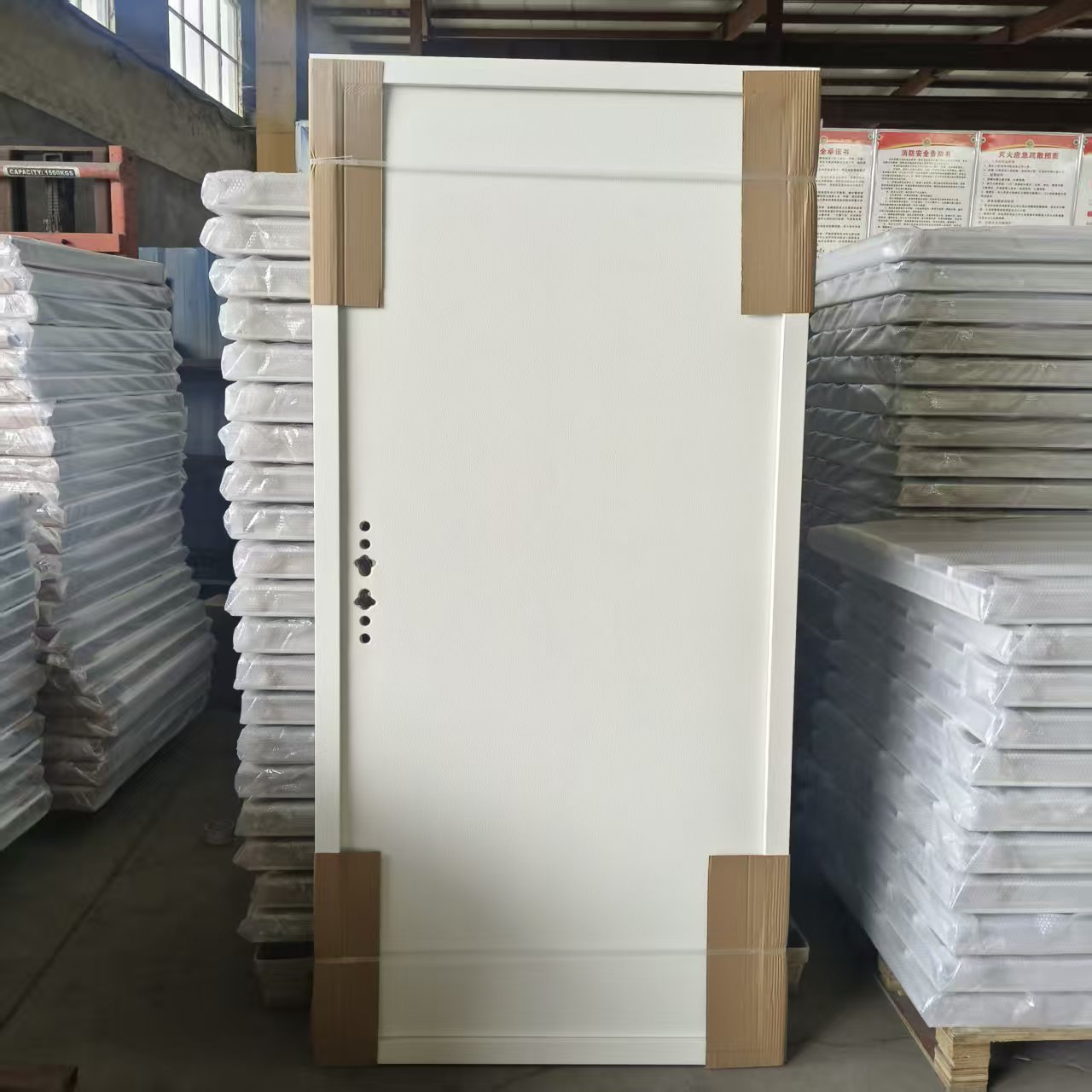

| Door | door | fan | 1 | 950*2035 | High-quality steel doors |

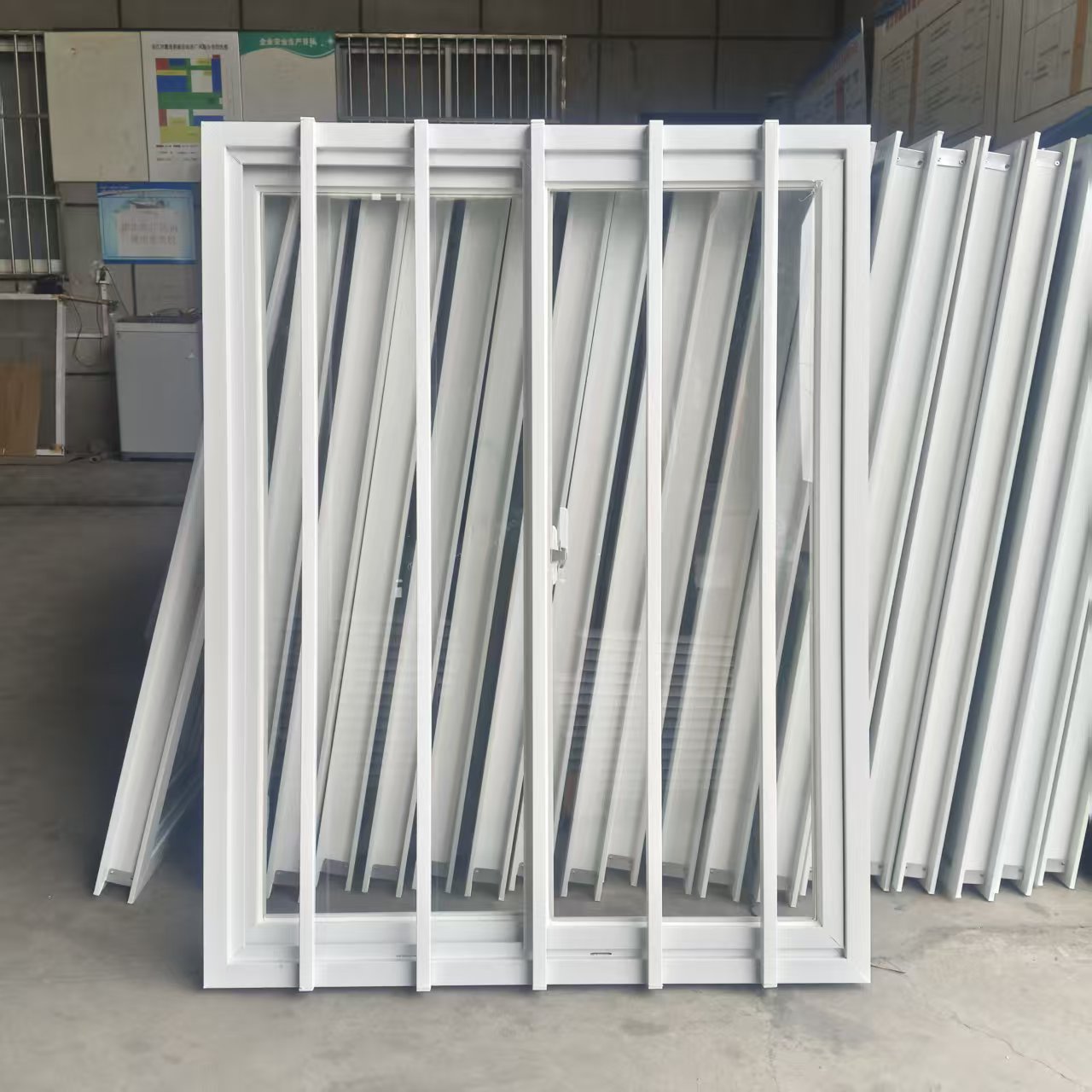

| window | Plastic steel single glass window | fan | 2 | 925*1200 | |
| Top tile | 0.4mm thick | sheet | 6 | 2.96 | |
| Bottom tiles | 0.2mm thick | sheet | 6 | 2.79 | |
| floor | 1.8 thick | sheet | 5 | Magnesium glass | |
| Angle aluminum | Angle aluminum | cover | 1 | The inner corner of the column and top edge is 4*4 | |
| hardware | - | - | - | - | Including screws, structural adhesives, sealing strips, etc |
| glass wool | - | pack | 1 | ||
Q235B has certain elongation, strength, good toughness and castability, easy to punch and weld, and is widely used in the manufacture of general mechanical parts. It is mainly used for welded structural parts with high quality requirements in construction and bridge engineering.
