| Standard | External dimension | 5950mm*3000mm*2800mm (L*W*H) |
| Internal dimension | 5750mm*2780mm*2480mm (L*W*H) | |
| Index | Thermal insulation | λ=0.035W/m·K |
| Sound insulation | Sound insulation level ≥ 26dB | |
| Waterproof performance | Organized drainage, with a precipitation of 16mm/min and no leakage. | |
| Ground live load | 1.8kN/㎡ | |
| Wind-resistant | 0.50kN/㎡ | |
| Fire performance | A-level | |
| Seismic performance | Level 8 | |
| Roof live load | 0.8kN/㎡ | |

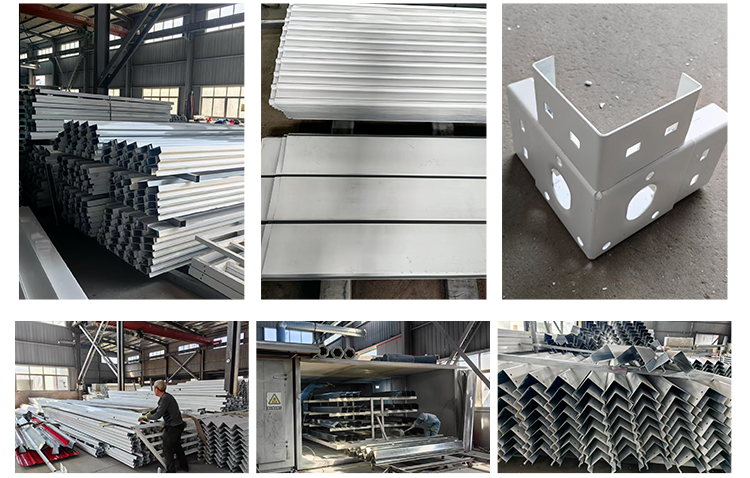

| Structure | Main profiles |
Ground main beam: specification 160mm, galvanized precision rolled bent beam 2.2mm thick; Ground secondary beam: 9 specification 50*100*1.2mm thick; Supports Column: Specification 160*160mm, galvanized precision rolled bent beam 2.2mm thick; Roof main beam: specification 160mm, galvanized precision rolled bent beam; Roof secondary beam: 2 specification 50*50*1.5mm, 9 specification 40*60mm. |
| Structural connectivity | M10×35 high-strength bolt | |
| Surface Treatment | Electrostatic spraying plastic powder baking paint. | |
| Wallboard | Rock wool board | Thickness of color steel composite plate is 50mm, color steel plate 0.25mm, white gray color, double sided flat plate embossed; Bulk density 50kg/m³, Class A noncombustible. |
| Roof | Roof slab | 980 type roof tile: color steel veneer thickness 0.4mm. |
| Insulating layer | Glass wool roll felt, thickness 40mm, bulk density 10kg/m³, Class A non-combustible. | |
| Suspended ceiling | 831 types trip ceiling panel, 0.25mm. | |
| Ground | Structural plates | Sanding cement high-strength floor, thickness 15mm. |
| Door | Entrance doors | Steel set door, size ≥ W920mm×H2040mm, stainless steel door lock. |
| Window | External window | Plastic steel window. |

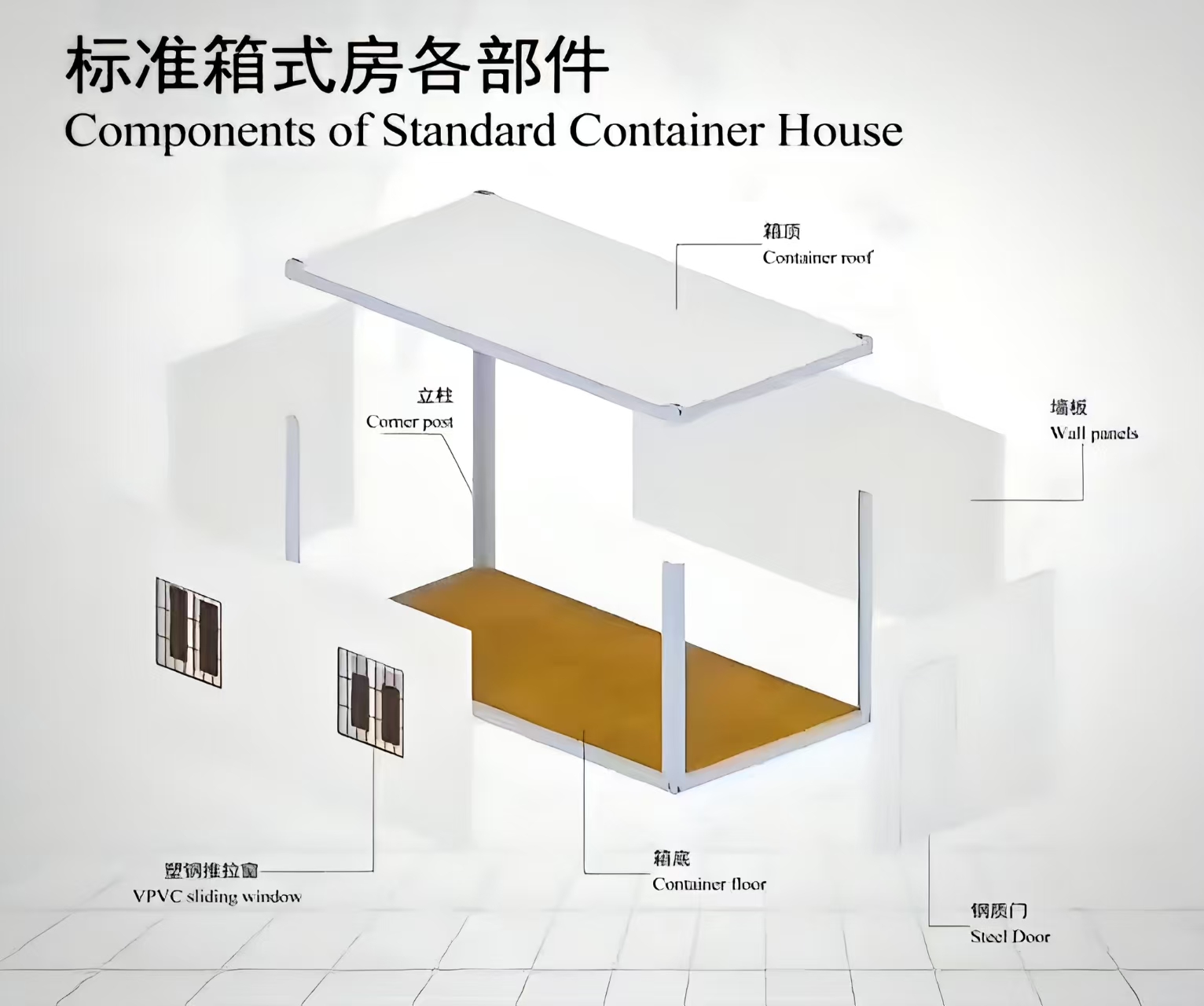

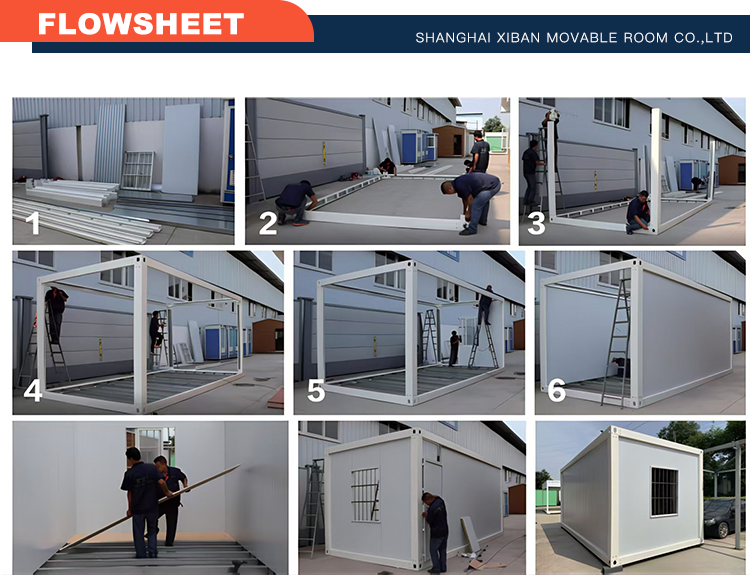

Standard Box-type room is mainly composed of 6 parts: columns, box top, box bottom, wall panels, plastic sliding windows, and steel doors. Wallboard thickness, color, and interior stuffing material can be customized. Plastic Steel sliding windows and steel doors can be selected as needed.

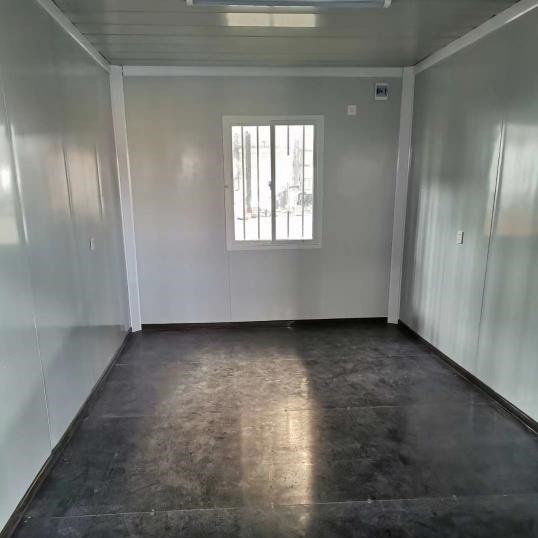

The container room interior usually lays fireproof cement fiberboard, which has high hardness and is easy to maintain. If needed, other types of flooring can be laid above to increase aesthetics, such as PVC composite floors or floor leather.

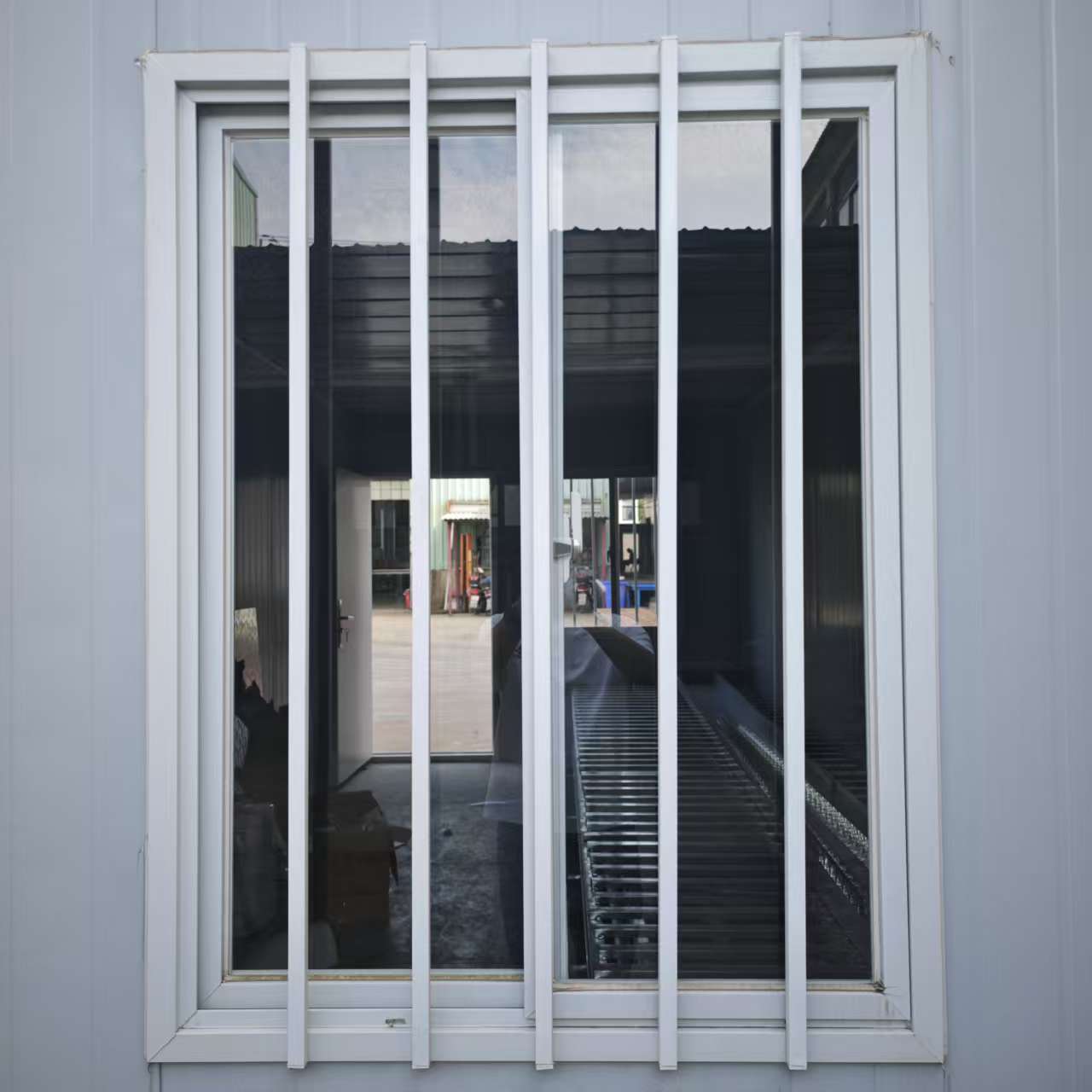

Sliding window of plastic steel, usually for standard box rooms

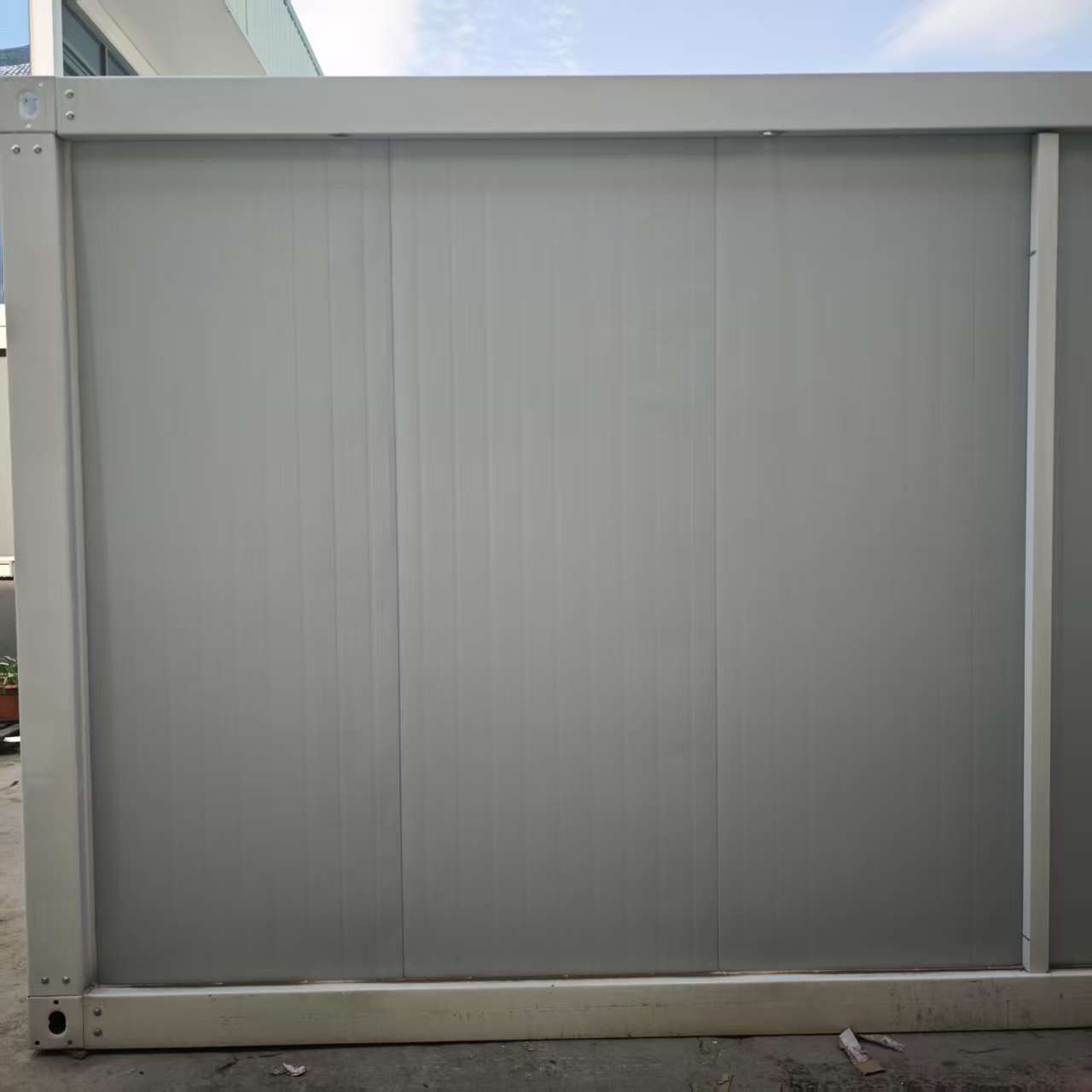

Fire rock wool board for wallboards, internal filling rock wool (polyurethane optional)

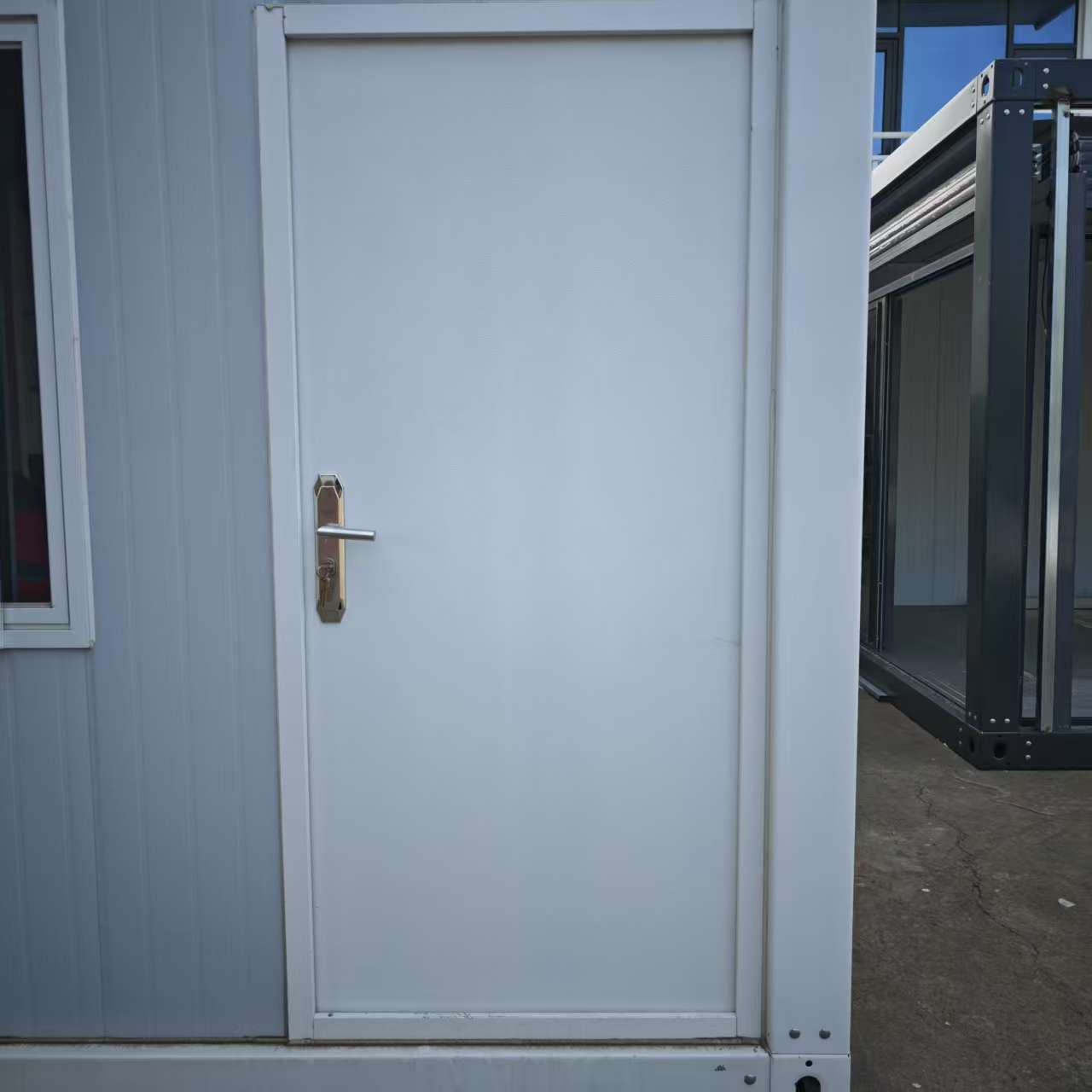

Steel door, usually for standard box rooms

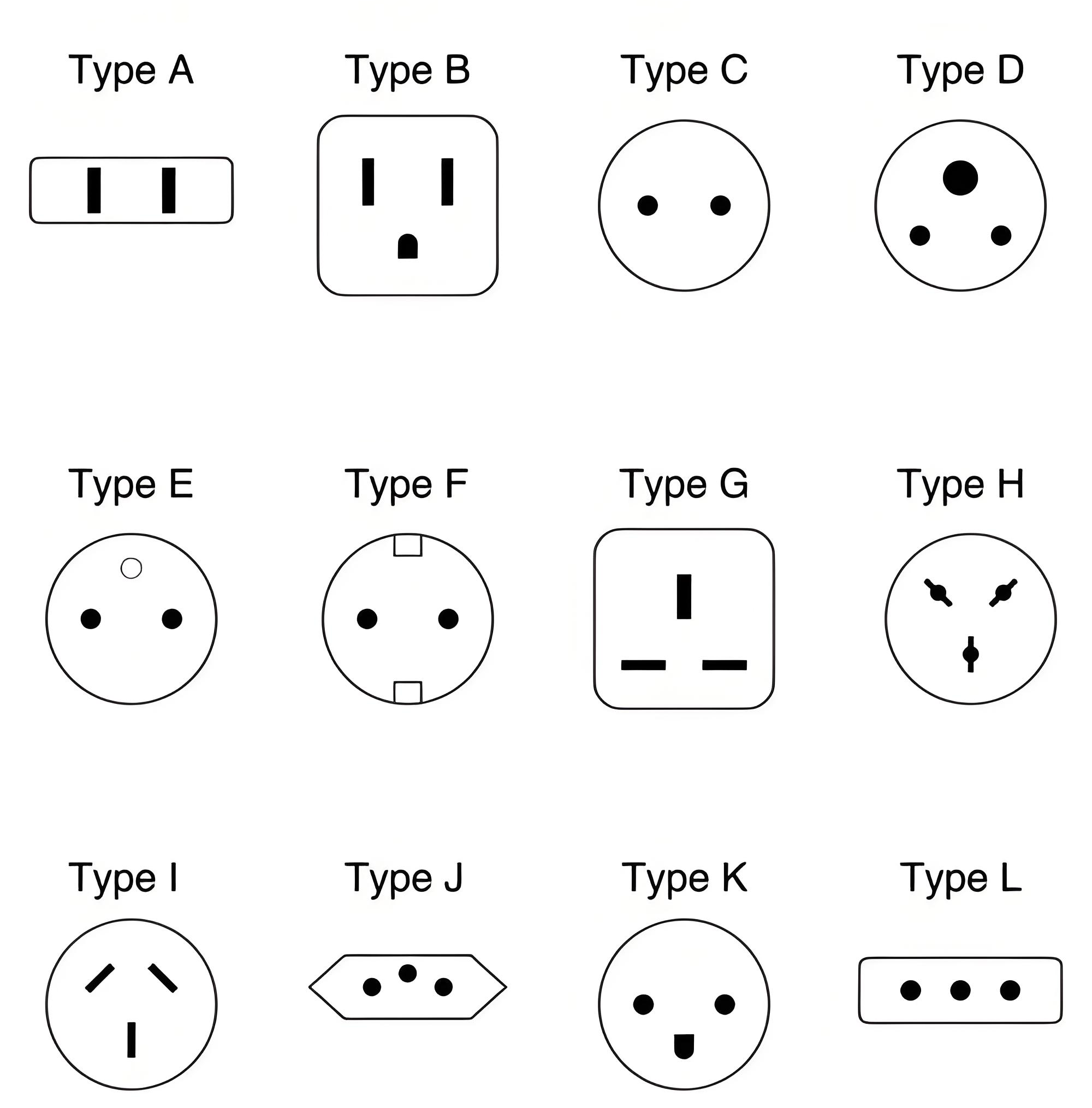

Various outlet interfaces provided upon request
Custom Colors: Factory supports custom color options
