Factory Direct Supply Luxury Modern Prefab Light Steel Villa Sandwich Panel Shell Waterproof Eco-Friendly Fire Resistant Solar

Product Description

Product Description

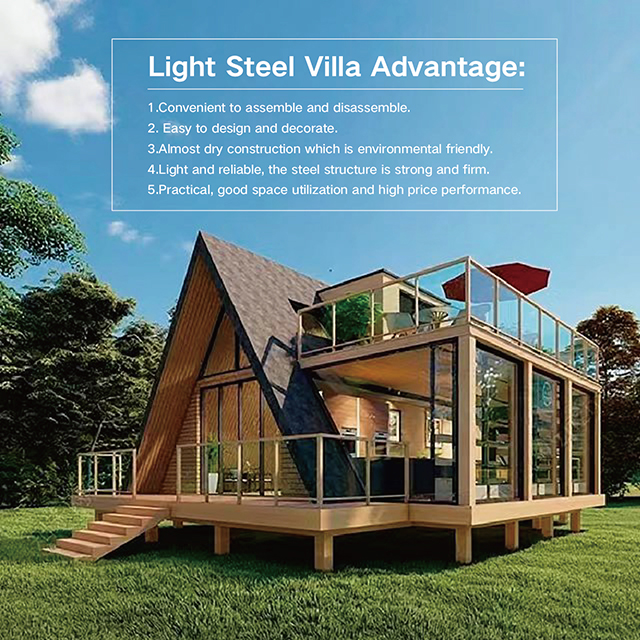

Light Steel Villa Overview

The Profile for Light Steel Villa

The light steel villa adopts the 0.8-1.5mm thickness galvanized C/U type steel (Q550DTz) as frame and install with composite wall and roof (OSB Panel/ Glass wool for heat and sound insulation/ Decorative panels for inside and outside). It's a kind of fabricated type wall bearing system, has the characteristic of light weight, large span, anti-seismic, hurricaneproof, thermal insulation, sound insulation and so on. And due to the industrial production of precast, components of composite wall panels, floor, and roof, during the installation it don't need welding, coating so quick installation can be achieved.

Specification

Product Name Prefabricated Light Steel Villa House
Main Frame 2.0/2.3/2.5/3.0mm thickness, with Powder Coating
Drainage System Φ50mm, PVC drainage tube, Precipitation 16mm/min No leakage
Ceiling V195 profiled gusset
Flooring Solid wood flooring, thickness 18mm, both sides of the floor of 18mm plywood, PVC Floor leather, thickness 2.0mm
Interior Description Inner corner post cover + PVC baseboard
Door The entrance door is: broken bridge aluminum folio size >= W1900*H2280mm, tempered glass. Interior door: W780*H2050S indoor high-end steel door
Window The exterior window is a plastic steel sliding window, size: W930mm*H930mm
Wall Panel Flame retardant benzene board, color steel EPS composite board, thickness 75mm, width 950mm, color steel plate thickness 0.3mm, color white gray, flat inside and outside, non-embossed heat insulation board, capacity 12kg/m³ flame retardant
Electricity System LED Round Ceiling Light, 15w/set. Bathroom 12W, national standard socket, single key switch *3, double open, single open Concealed electrical box*1 National standard air switch 220v, 50Hz, CEE industrial plug, 3P32A*1 Entrance line: 3*6 square meters Air conditioning socket: 3*4 square meters Ordinary socket: 3*2.5 square meters Lighting: 2*1.5 square meters
Insulation 75/100mm glass wool
Strengthening Bottom Galvanized steel square tube can be add to 14 pieces
Resistance Wind resistance: Grade-11 0.60kn/㎡; Earthquake resistance: Grade-8
Other Fitting + 995 structural silicone sealant + fastening

Product Details Gallery

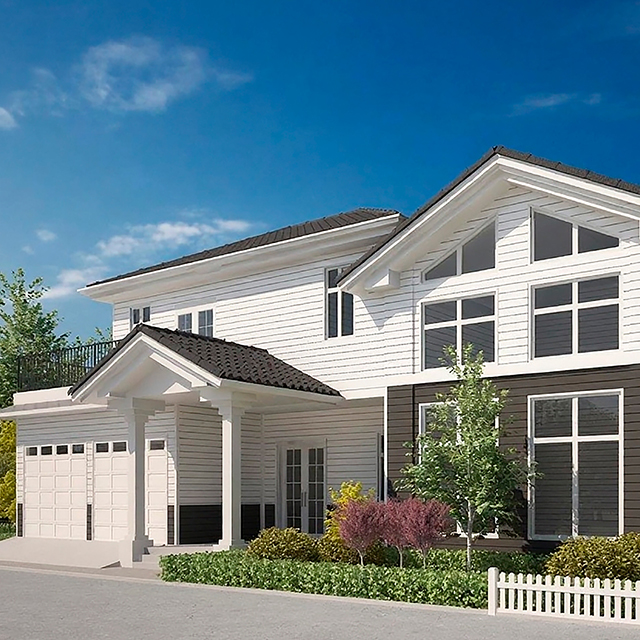

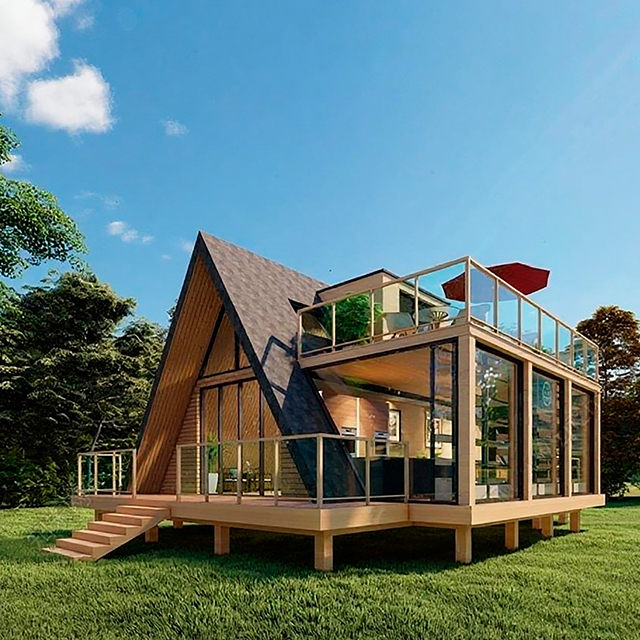

Light Steel Villa Detail 1 Light Steel Villa Detail 2 Light Steel Villa Detail 3 Light Steel Villa Detail 4 Light Steel Villa Detail 5

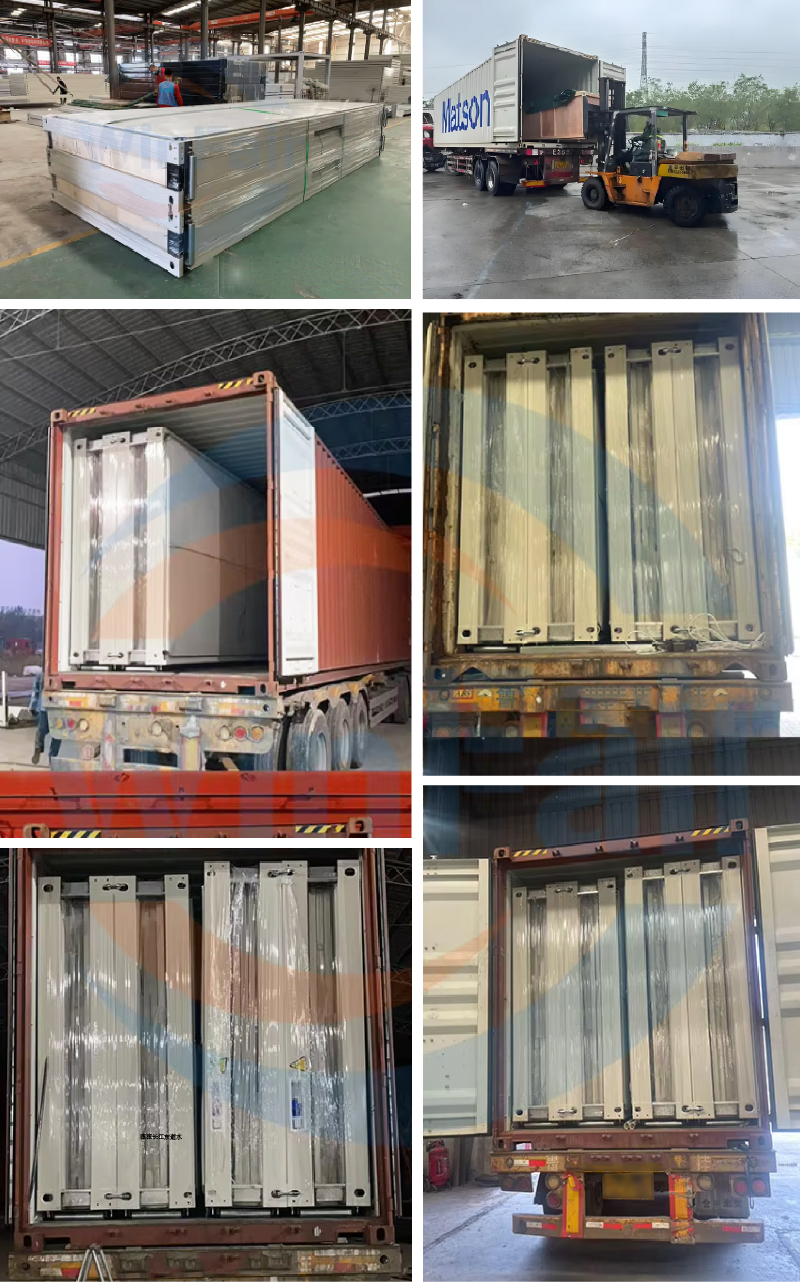

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Packaging Process 1 Packaging Process 2

Company Profile

Established in 2017, the original manufacturer of integrated houses has its factory located in the Development Zone, covering an area of 60,000 square meters and employing 200 staff. It focuses on the development and operation of integrated houses, relying on environmental protection, energy conservation, simple and fast combination, light weight, portability, reusability, and good seismic performance.
We are an innovative enterprise engaged in the R&D, design, production, and sales of integrated houses, such as flat-pack container houses, quick assemble container houses, foldable container houses, expandable container houses, internet-famous container houses, space capsules, apple cabins, popular dining trucks, container bars, and lightweight villas. We provide a one-stop service from design to manufacturing and installation. With a powerful professional team for R&D, design, manufacturing, installation, and after-sales service, we adhere to the cooperation concept of quality first, customer first, and high-quality service. Our products sell well all over the world.
Manufacturing Factory View 1 Manufacturing Factory View 2 Manufacturing Factory View 3

Frequently Asked Questions

Why choose us?
We specialize in the research & development of Eco-Friendly Building Materials with the integration of designs of prefabricated production units. We hold CE, SABS, SGS, and SIRIM certifications, comprising many structural patents.
What services do we provide?
We provide graphic design, 3D model design, total solutions for projects, 24-hour online communication, and comprehensive one-stop services from design to installation.
How can I get a quotation for my project?
If you have your own drawing, we can offer you our quotation accordingly. If you do not have drawings, we can make a custom design based on your specific requirements.
How do you install / assemble the house?
Usually, it is very easy and fast to assemble the integrated houses. We will supply you with detailed assembly videos and structural drawings marked with panel numbers for reference.
Can we purchase other items like furniture or appliances?
Yes, we can source and offer complete solutions, incorporating interior furniture and appliances as part of the overall structural package.
What are the main advantages of light steel villas?
Light steel villas offer excellent benefits including light weight, large spans, high anti-seismic (Grade-8) and wind-resistance (Grade-11) performance, superior heat/sound insulation, and exceptionally fast installation without requiring welding.
